U Drains
U Drain Light (T6)

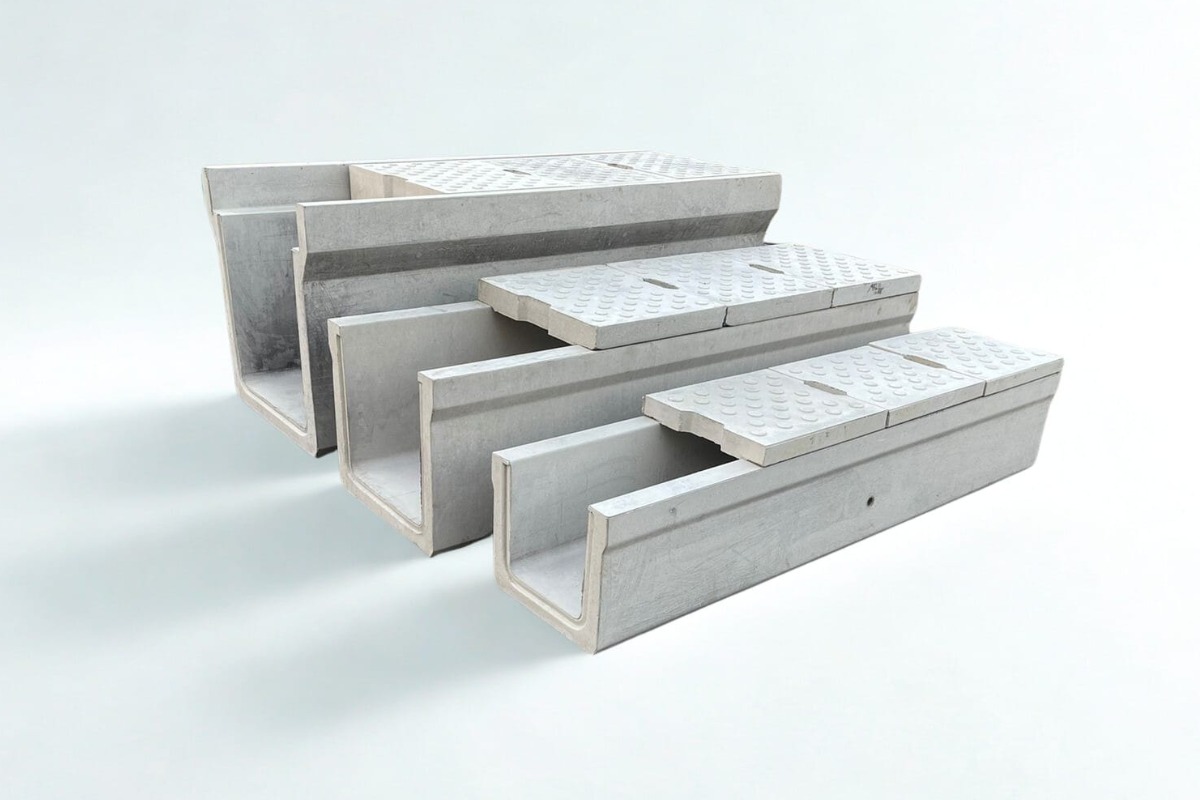

Precast U-shaped drainage channel rated for light-duty applications (Class T-6) — suitable for pedestrian walkways, gardens, and light vehicle access areas. Fully customizable dimensions available via our Engineering Product Studio.
Key Features
- Light Duty (T-6) load class, suited to pedestrian and light vehicle traffic
- Lightweight profile for easier manual handling and faster installation
- Precast in M40/M50 grade concrete for reliable strength and durability
- Grooved joint detail for a secure, mortar-filled connection between units
- Cast-in lifting arrangement for safe, controlled handling

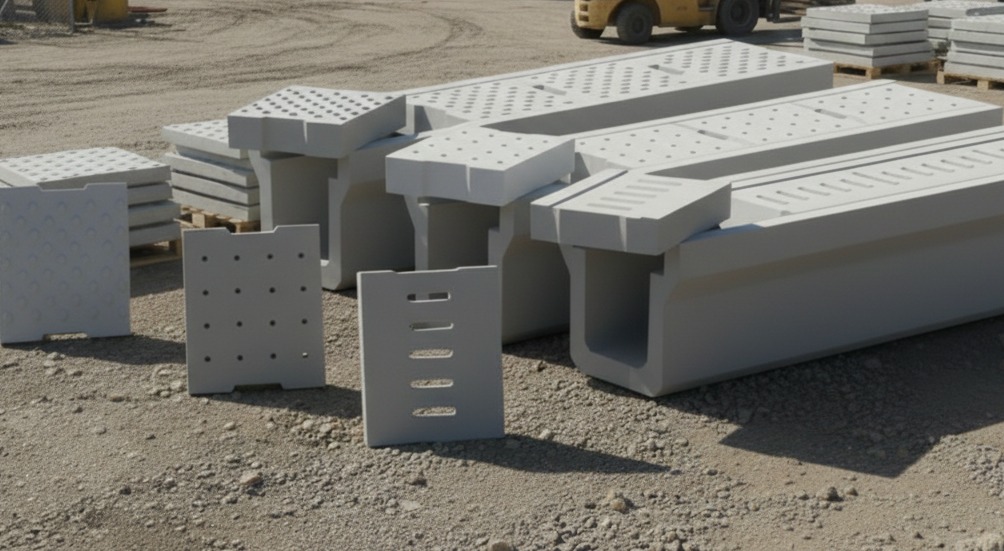

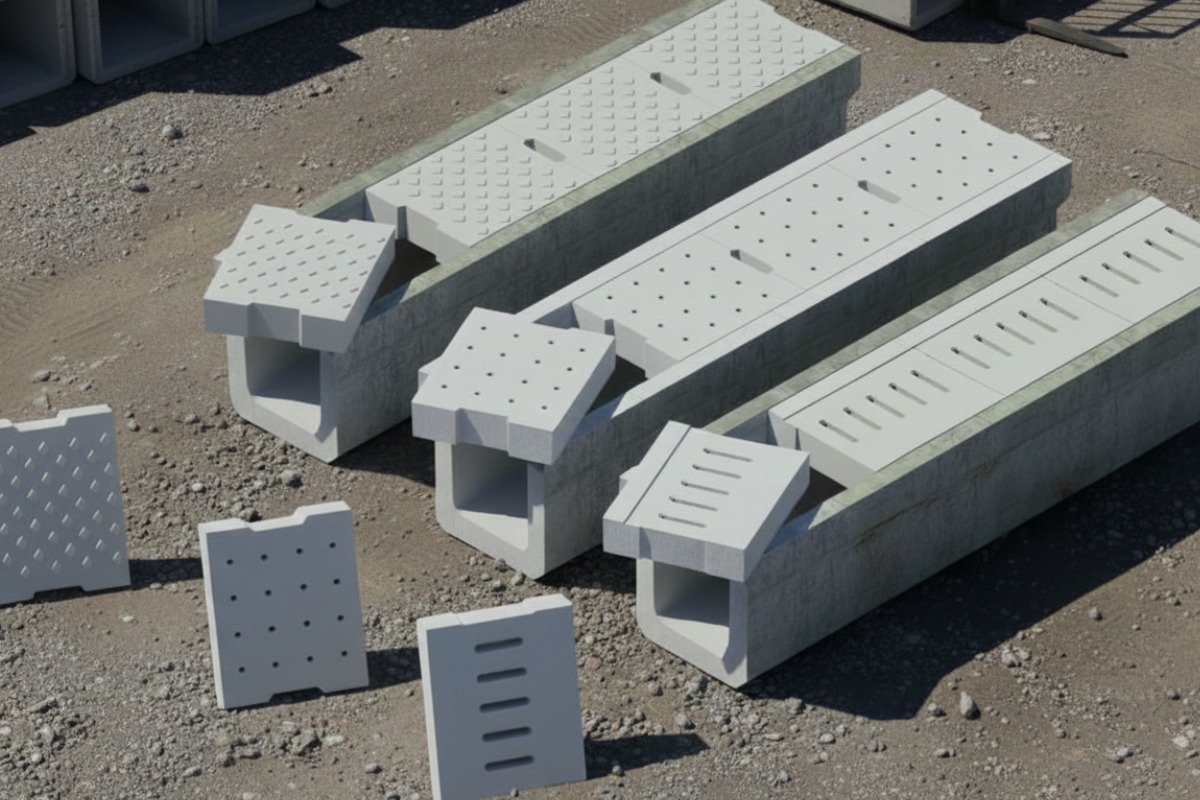

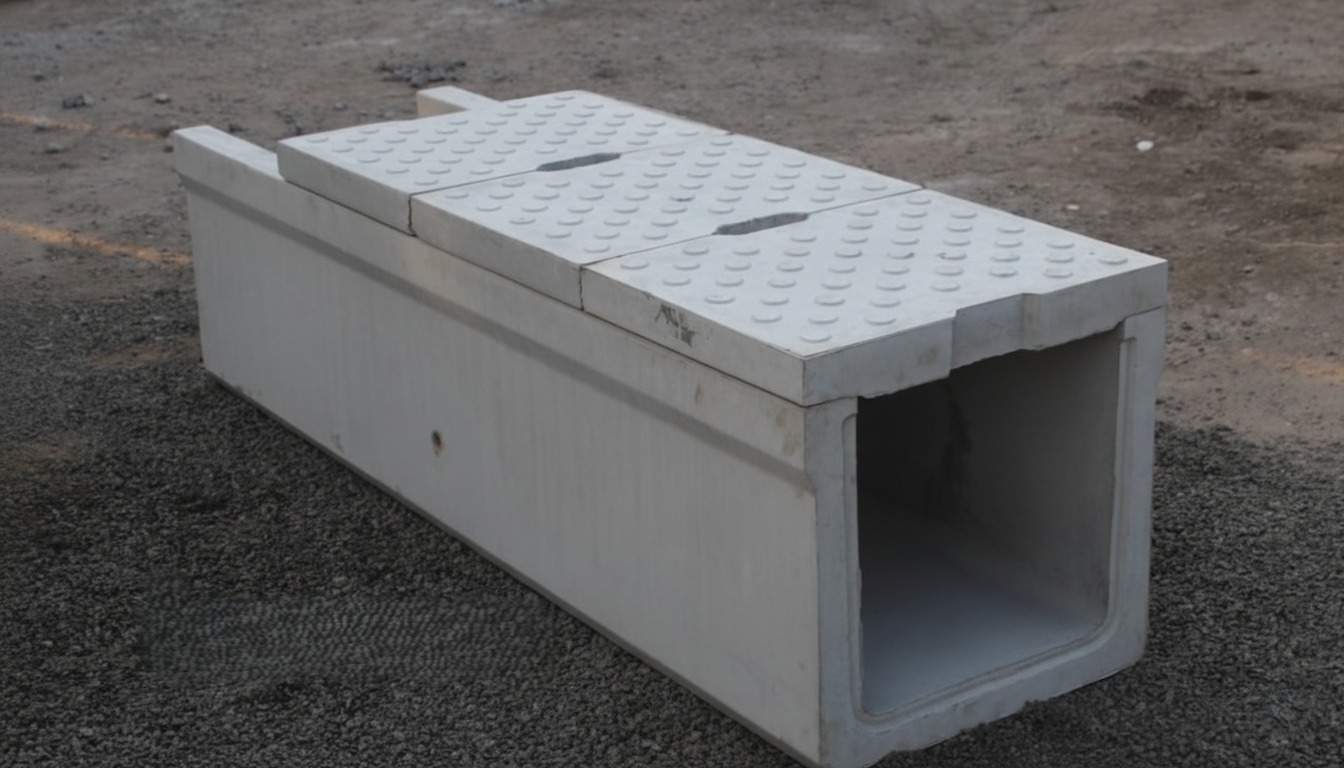

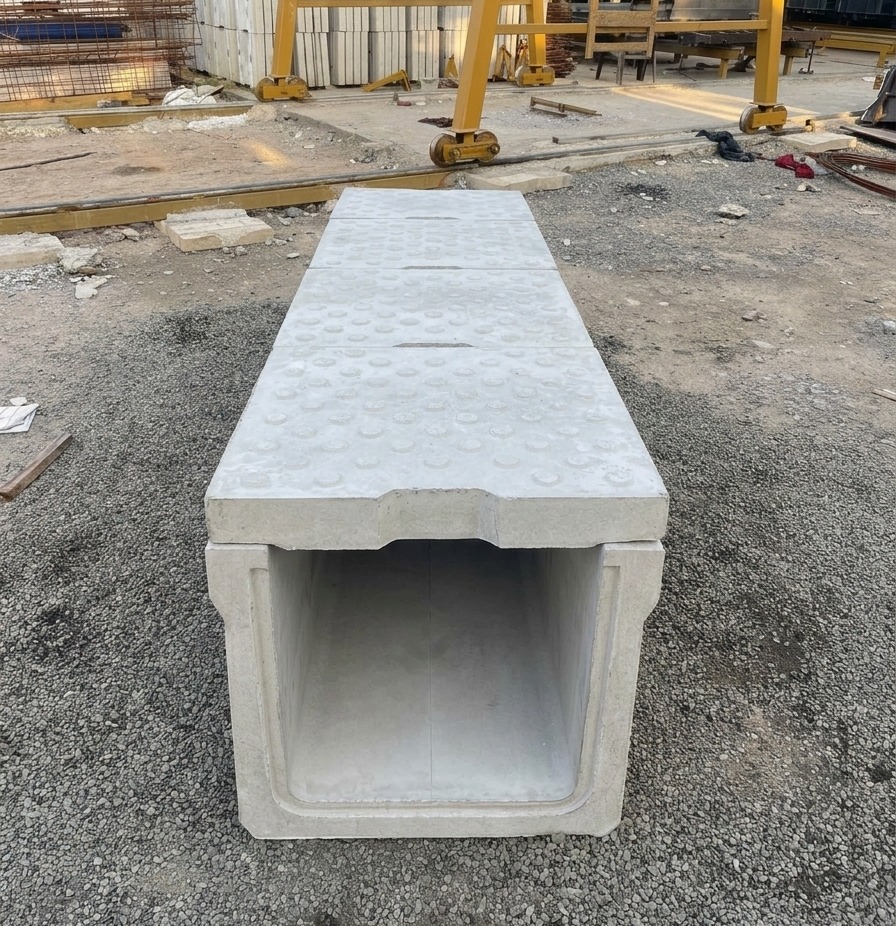

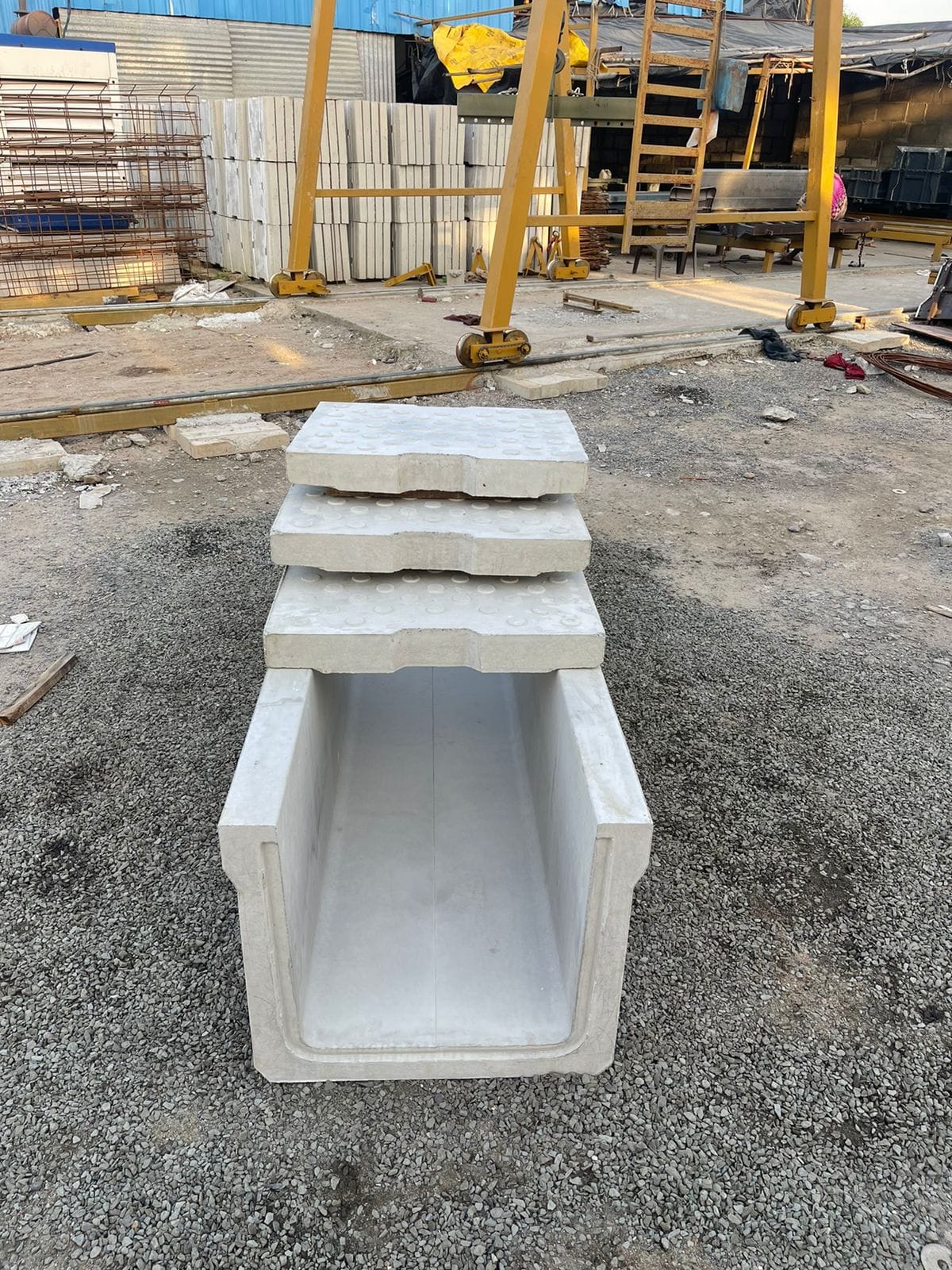

- Compatible hollow core cover slabs available for a trafficable surface
Advantages
- Cost-effective choice for pedestrian and light-traffic drainage needs
- Lighter weight than Heavy Duty (T-25) for quicker handling on site
- Factory-controlled precast quality, consistent from unit to unit
- Configurable dimensions via the Engineering Product Studio before ordering
Specifications
Load Class
Light Duty (T-6)
Concrete Grade
M40/M50
Standard Length
2000mm
Standard Size (Ext x Int x Depth)
730 x 600 x 685mm
Base Thickness
85mm
Joint Type
Grooved joint, mortar filled
Applications
- Pedestrian walkways and garden/landscaped areas
- Light vehicle access roads and residential driveways
- Surface water drainage around low-traffic building perimeters
- Parks, campuses, and other pedestrian-priority developments
Installation Guide
1
Site Preparation
Ensure a level, compacted base or bedding as per the layout drawing before the unit arrives.
2
Positioning
Units are lifted and positioned using appropriate lifting equipment under our team's guidance.
3
Alignment & Jointing
Units are aligned to the design grade and joints are sealed or grouted as specified.
4
Final Check
A final inspection confirms alignment, finish and stability before handover.
Our installation team is available to assist on site for this product — request installation support.
